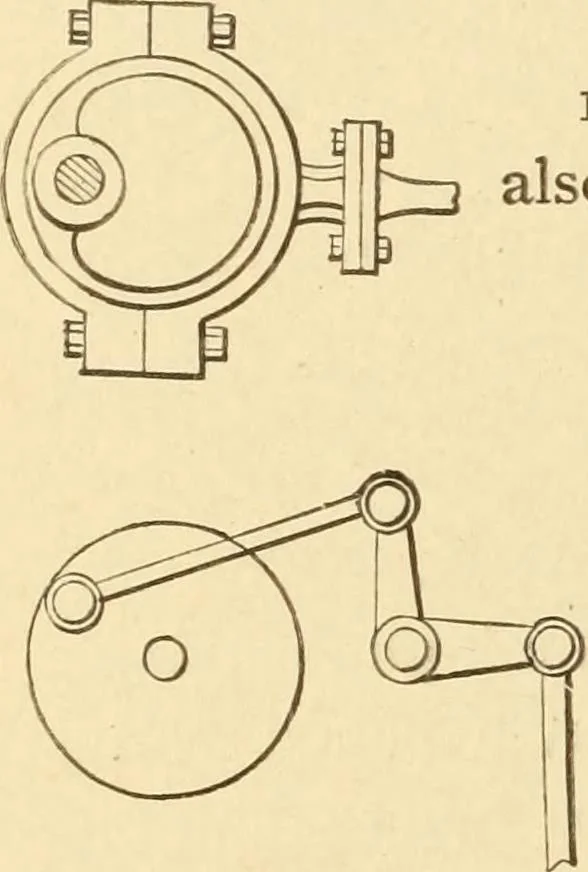

1113. BROWNELL CRANK MOTION.— The wrist pin is fixed on a tangent slide held in itsforward position by a volute spring attached to theface plate. The slide is retained by pins in tra-verse slots. Can be arranged for either kind oftreadle, to keep the crank pin off the center. 1114. ORDINARY CRANK… … 1115. ECCENTRIC and straps for valve motion,also used in place of a crank for many purposes. 1116. RECIPROCATING MOTION of aconnecting rod through a bell crank connecteddirectly with a wrist on crank disc. In thiscase the forward and back motions are nearlyalike depending upon the proportional…
