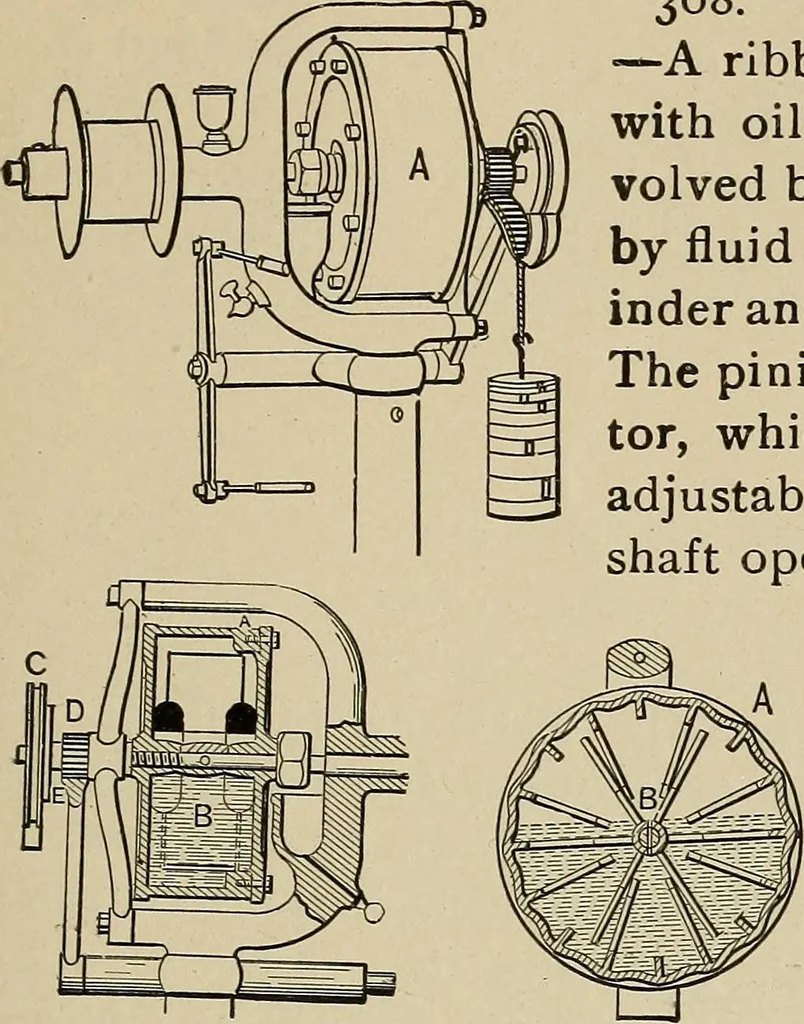

307. DIFFERENTIAL GOVERNOR.—The larger pulley. A, is driven by a belt fromthe motive power, winding up the larger weightwhich is offset by the revolution of the smallerjDulley and the fan wheel, which is regulated bythe difference in the weights which balancesthe frictional resistance of the fan.… … 308. • HUNTOON GOVERNOR.—A ribbed cylinder, A, is partly filledwith oil. A paddle wheel, B, is re-volved by the pulley and shaft whichby fluid friction moves the ribbed cyl-inder and pinion in the same direction.The pinion meshes in the toothed sec-tor, which is counterbalanced by anadjustable…
