Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 103

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 103

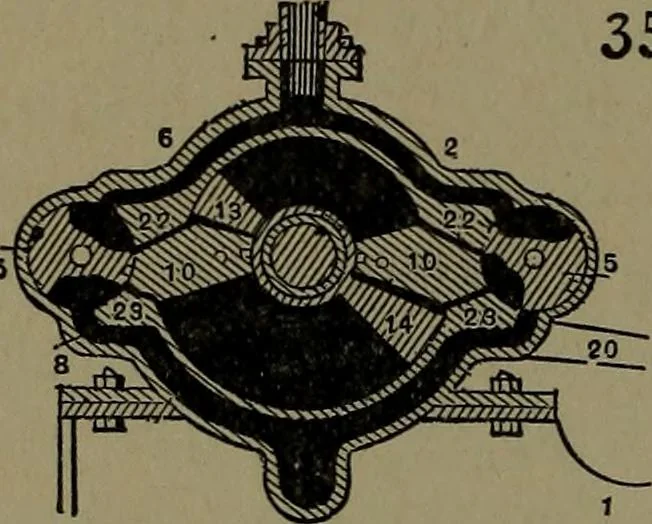

fly-wheel. Each cylinder issingle-acting. Valves are on a central disc at A. 96 STEAM POWER. 351. BATES COMPOUND VIBRATINGENGINE.—The upper section of the cyl-inder has a shorter radius than the lowersection for the compound effect. The shaftand wings are concentric and vibrate be-tween two…
