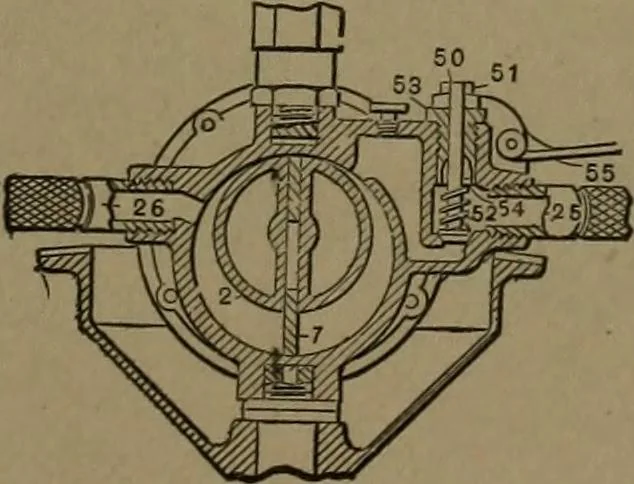

683-684. PNEUMATIC MOTOR DRILL STOCK.—A horizontal rotary motor, over the centre ofthe spindle, carries on one end of its shaft abevel pinion, which drives a bevel gear attached by the lower section of thecase to the drill spindle.The inlet and exhaust portsand valve are shown in thevertical… … i84 AIR POWER APPLIANCES. 685-686.
