Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 118

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 118

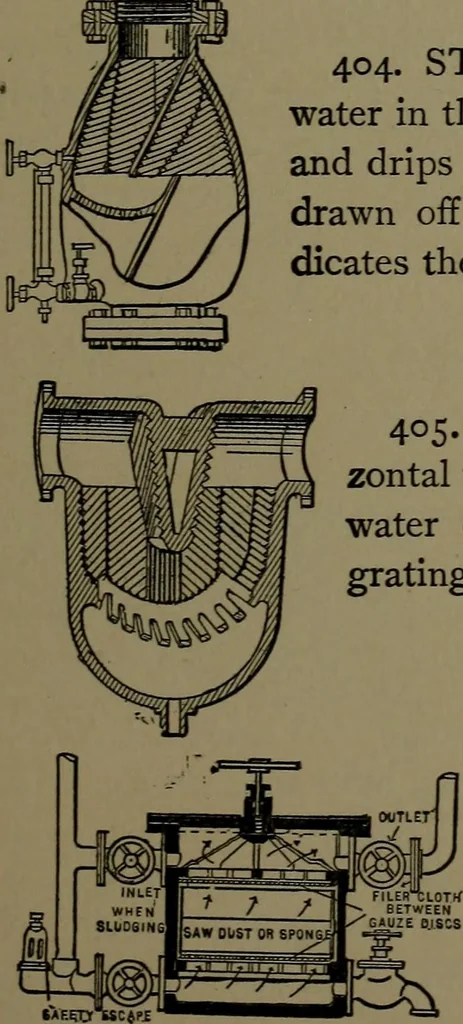

tubes. 403 a.section. Cross … 404. STEAM SEPARATOR. —The entrainedwater in the steam is lodged upon the rough walls,and drips to the striiner and into the pocket, and isdrawn off through the valve. The glass gauge in-dicates the height of water in the pocket. 405. STEAM SEPARATOR, in line for hori-zontal pipes. The corrugated…

Mechanical movements

Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
