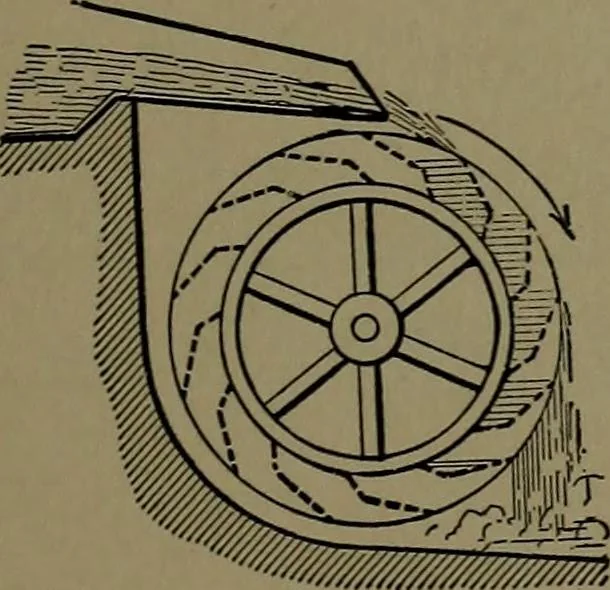

OVERSHOT WATER WHEEL, withsteel buckets. With the gate chute im-pinging upon the buckets an efficiency offrom seventy to seventy-five per cent, maybe obtained. h X w X .70 = horse-power. 33,000 h, Total height of water-fall from race; w,weight of water falling per minute. … 465. OVERSHOT WATER WHEEL.— Power equals about sixty per cent, of the valueof the water-fall flowing over the wheel.
