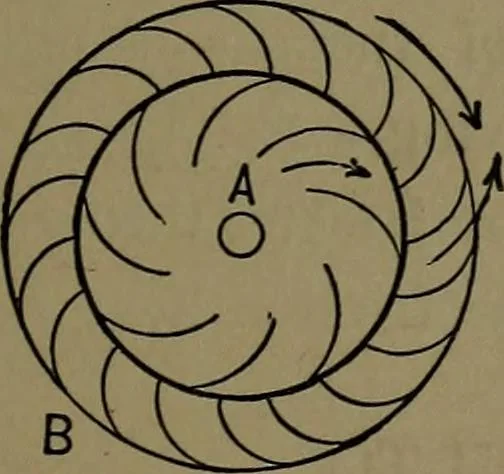

491. CAMDEN TURBINE, has two inde-pendent sets of buckets. The upper set is inwardand central discharge, the lower set is curvedbackward, with tangential discharge. 492. «MODEL TURBINE.—The run-ning-wheel has a downward discharge. Theregister gates are pivoted and operated byarms from a sector.
