Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 154

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 154

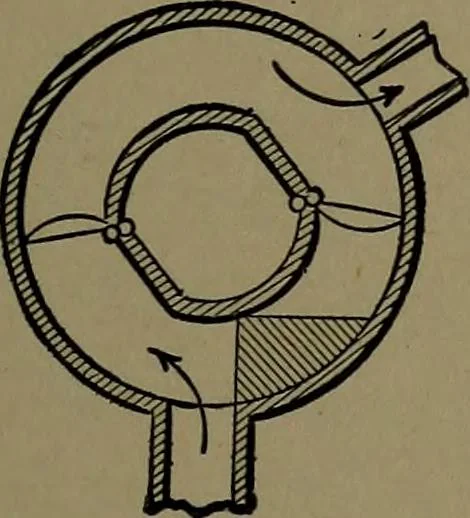

542. COCHRANE ROTARY PUMP.—A slide pocket in the outer shell receives the pistonwing of the inner eccentric cylinder, which swingsin contact with the shell on its centre, 2, carriedaround by a cam crank. … 543. One of the early forms of Rotary Pumps.Only suitable for free flow to the pump. Will notlift. Obsolete. 544. HYDRAULICTRANSMISSION OFPOWER.—A driving rotarypump connected by a flow and return pipe to a driven rotarv motor at any convenient distance. Has been applied to bicvcles.

Mechanical movements

Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
