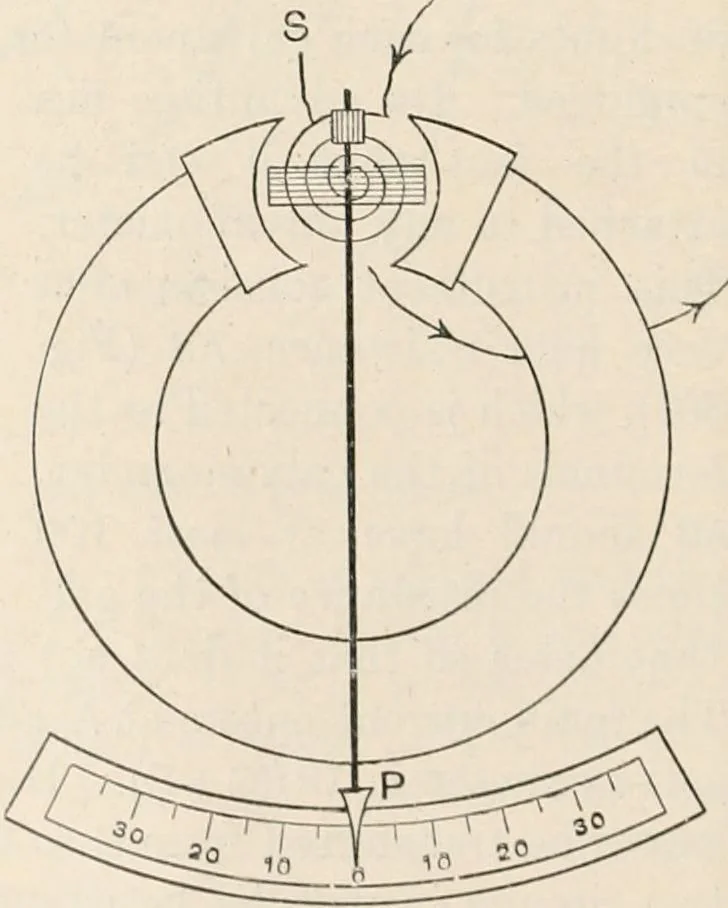

coil galvanometers witha pointer moving over a scalecalibrated to read thousandths ofan ampere. A typical arrange-ment is illustrated in Fig. 804.The permanent magnet, with itspole pieces and the soft ironcylinder, is arranged exactly as Le cribed on p. 866 for the galvanometer. The coil, however,… … Fig. 804—Milliammeter. Lxvrn AMMETERS 871 balanced pointer P is carried by the moving coil, and serves toindicate the deflection upon the scale. The scale is so graduated
