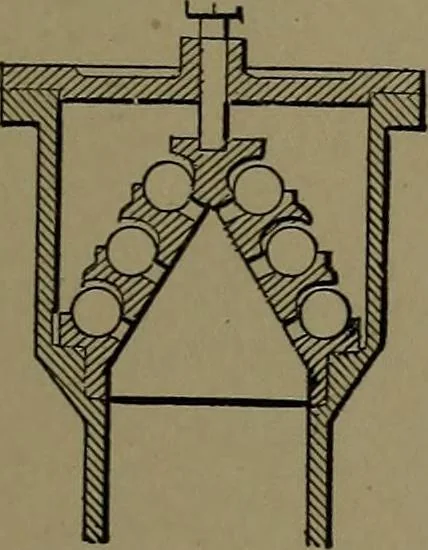

594. HYDRAULIC VALVE, used onelevators. Cylindrical in form, the valvesmove across the ports by a rock shaft andarms. A, pressure chamber. B, C, to elevatorcylinder. … ^mMm 595. MULTIPLE BALL VALVE.—The cone-valve seat is in two parts ; the cover or cage is heldin place by the screw in the cap.
