Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 179

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 179

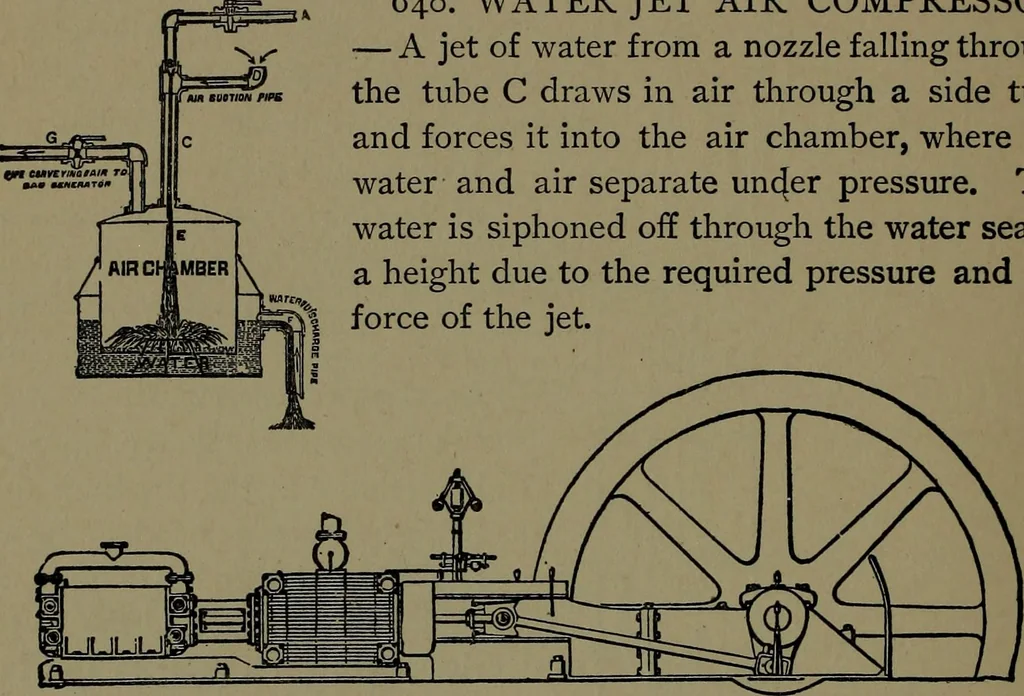

639. AUTOMATIC AIR COMPRES-SOR, Bennet model.Showing the valve gear ofa simple lever connectedby link to the eccentric. 172 AIR POWER APPLIANCES. 18, mxcvoM KPt … 640. WATER JET AIR COMPRESSOR.— A jet of water from a nozzle falling throughthe tube C draws in air through a side tubeand forces it into the air chamber, where thewater and air separate un4er pressure. Thewater is siphoned off through the water seal ata height due to the required pressure and…
