Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 196

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 196

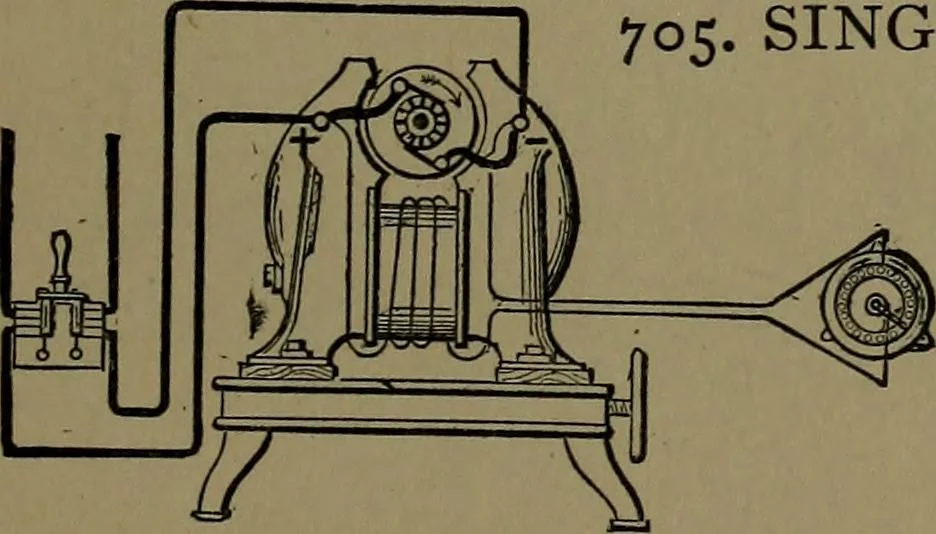

704. ELECTRIC GENERATOR CONSTRUCTION.—Series winding in which the armature, fieldwinding, and external circuit are in series or one contin-uous line. Best for arc lighting. A, armature; C, com-mutator ; h and V brushes; the coil showing the fieldwinding. … 705. SINGLE-POLE SHUNT GENERATOR,showing the shunt-winding connec-tion with the brushes and branchwiring to a rheostat controller. Theheavy lines are the main currentwith a switch.^
