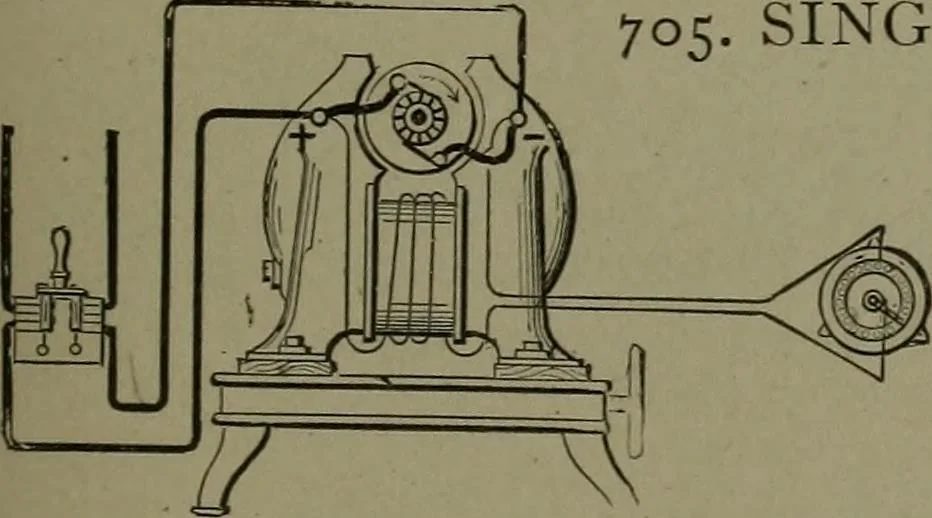

704. ELECTRIC GENERATOR CONSTRUC-TION.—Series winding in which the armature, fieldwinding, and external circuit are in series or one contin-uous line. Best for arc lighting. A, armature ; C, com-mutator ; b and b brushes; the coil showing the fieldwdnding. … 705. SINGLE-POLE SHUNT GENERATOR,showing the shunt-winding connec-tion with the brushes and branchwiring to a rheostat controller. Theheavy lines are the main currentwith a switch.
