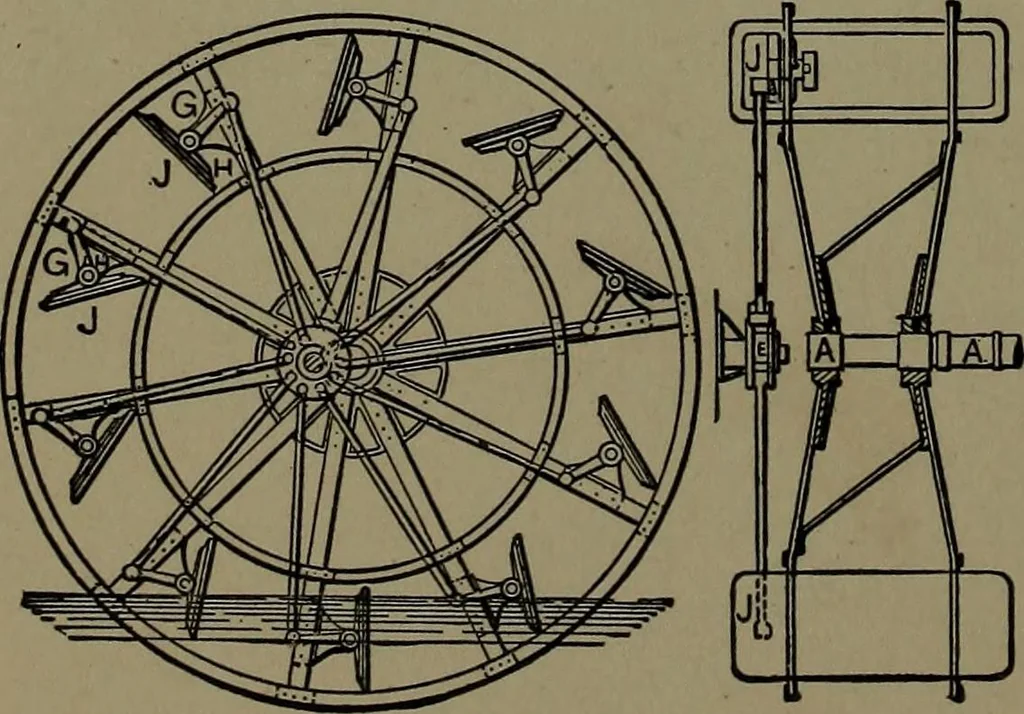

819. VERTICAL BUCKET PADDLE WHEEL. c —The buckets, a^ a^ a, a, are pivoted to the shaft armsjby b. To the pivots are attached cranks, c^ r, ^, cwhich are pivoted to the arms of an eccentric ring re- c volving with the shaft on a fixed eccentric, e. By thisa arrangement the buckets are kept vertical. … 820. FEATHERING PAD-DLE WHEEL.—The buck-ets are hinged with back le-vers and turned to their properposition by arms pivoted ec-centric to the shaft Theframework of the wheel is ofiron or steel. 821. Cross section. NAVIGATION AND ROADS. 215
