The modern gas tractor, its construction, utility, operation and repair; a practical treatise defining every branch of up-to-date gas tractor engineering, driving and maintenance in a non-technical manner. Considers fully all types of power plants and their components, methods of drive and speed changing mechanisms. Describes design and construction of all parts, their installation and adjustment as well as practical application of tractors in the field (1914)
Pagé, Victor Wilfred, 1885-1947 · New York : Norman W. Henley · leaf 296

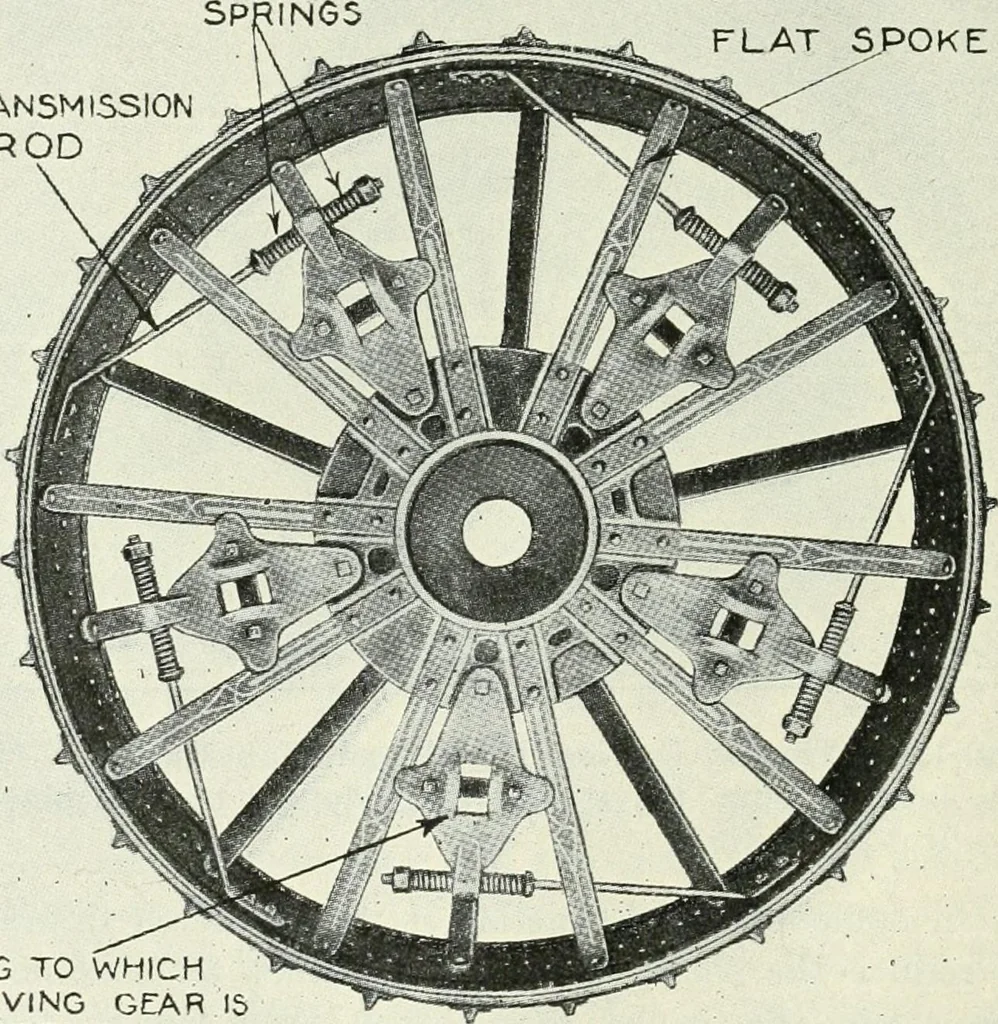

ed to a series of five lugs which deliver their powerto the wheel rim through the medium of transmissionrods, which are joined to the movable lugs only bymeans of helical coil springs. The drive is thus directedto the wheel rim by yielding members and the wheelis not subjected to shocks which may… … LUG TO WHICHDRIVING GEAR 15 FASTENED Fig. 123.—Traction Wheel of Gas Tractor With Spring Mem-bers to Remove Shocks From Driving Gears. The Modern Gas Tractor 299
Farm engines · Internal combustion engines
