Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 223

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 223

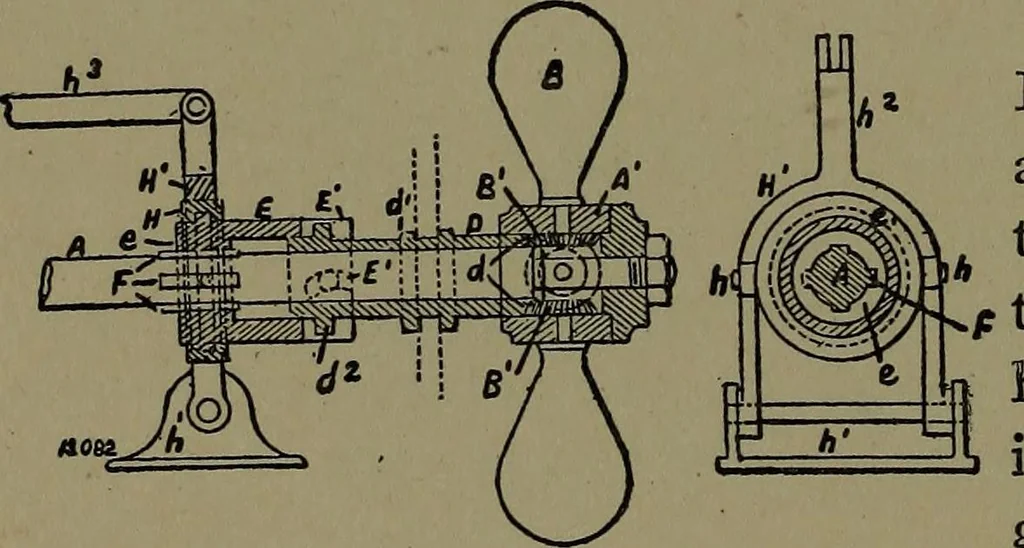

ve, withgear-cut end to fit the pinionteeth, revolves with the shaft. An inclined slot-sleeve E, moved by ayoke lever, gives a slight rotary motion to the geared sleeve by whichthe four blades are reversed. S^^. Section of shaft and reversing lever. 834, SCREW PROPUL-SION.—Deep immersionscrew of…
