Machine drawing; a text and problem book for technical students and draftsmen (1921)
Svensen, Carl L. (Carl Lars), 1884- · New York, D. Van Nostrand company · leaf 55

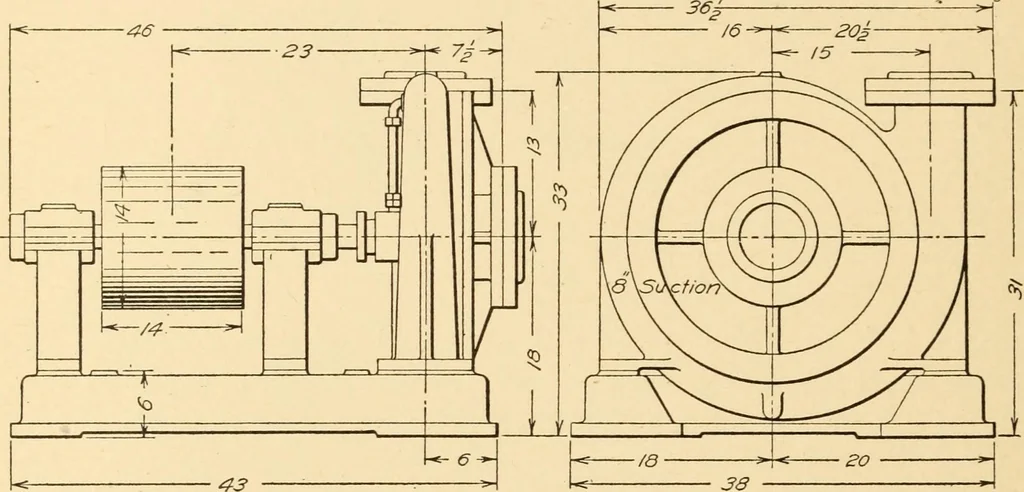

ingdrawings. Erection drawings show the order of putting parts together, dimen-sions for center distances, location of oil holes, valves, switches, etc. 80. Making an Assembly Drawing.—The purpose for which the 44 MACHINE DRAWING drawing is desired must first be considered, after which the proper… … SINGLE STAGE CENTRIFUGAL PUMP SCALE DATE Fig. 78. Outline Assembl}^ Drawing. Locate the main center and base lines for the complete machine.Locate the center and base lines of the larger details of which the machineis composed. Draw the larger stationary parts in the different views.Determine…
