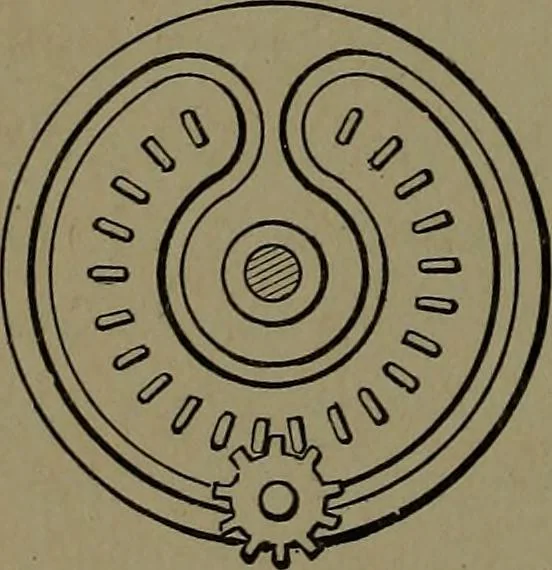

901. ALTERNATE CIRCULAR MOTION from continuous motion of geared wheels. Agrooved cam revolving with a geared wheel pro-duces a variable or alternate motion to a crank,through a pin in the groove connected to the crank and to a fixed point by a connecting rod.
