Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 239

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 239

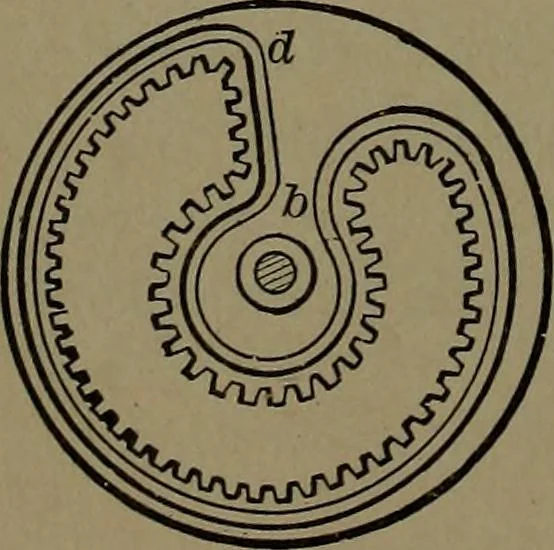

902. MANGLE WHEEL with equal motionforward and return. The pinion moves over thesame teeth in both motions. The pinion movesvertical in a guide slot, not shown. The end ofthe shaft is guided vertically by the groove keep-ing the pinion teeth in mesh. 903. MANGLE WHEEL GEAR in the oper-ation of…
