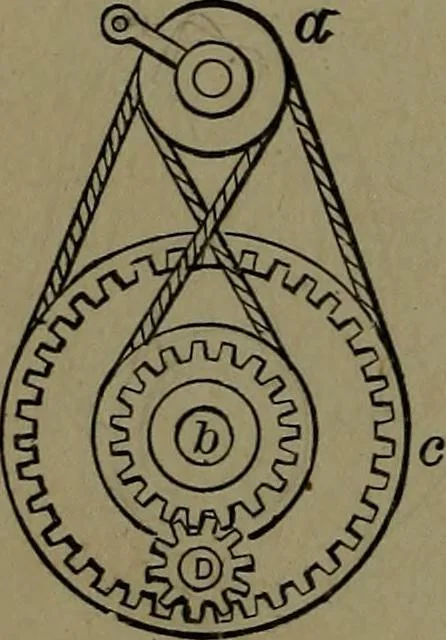

942. REVOLUTION OF A PINION aroundits own centre and also around the common centreof two externally centred gears. ^, driving pulleywith cross band to gear pulley b^ and direct bandto gear pulley c. The differential motion revolves thepinion D around its own axis and around its externalaxis b, A…
