Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 249

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 249

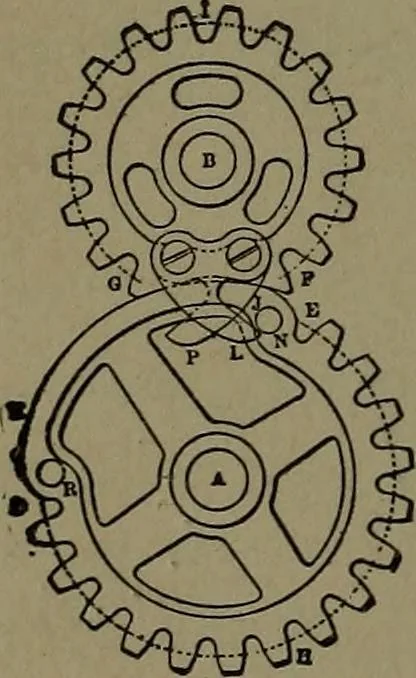

954. INTERMITTENT MOTION OF SPURGEAR.—A is the driver. The pin J and the dog Lare on the front side of the gear; the pin R and dogP are on the back. This class of gears may be madein varying proportion to suit the required stop motionof the gear B, A being thr iriver.

Mechanical movements
