An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 250

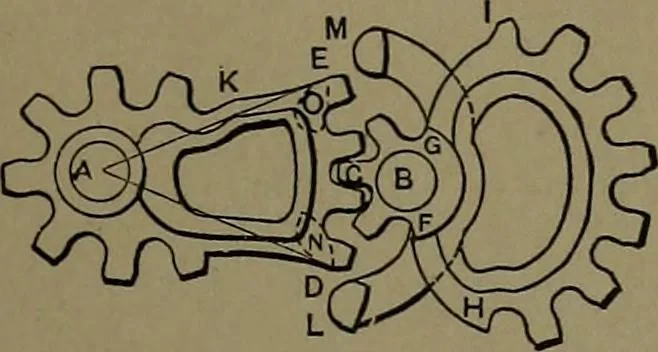

wheel B, The dotted sectionat G shows the mesh of the spur, K, of the stopwheel. A is the driving wheel. 957. FAST AND SLOW MOTION SPUR GEAR, or a quickreturn when operating a slide motion by a crank. The driving gear B is composed of gear sectors of differen-tial radius to correspond with the…
