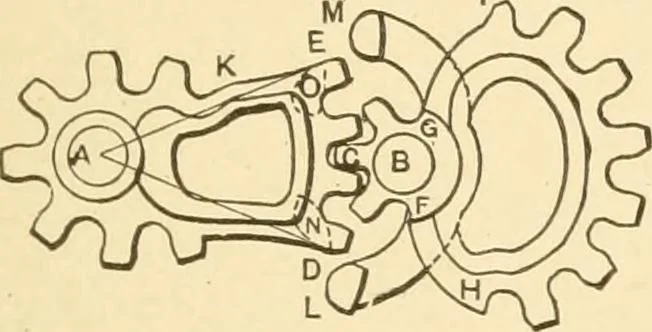

n wheel B, The dotted sectionat G shows the mesh of the spur, K, of the stopwheel. A is the driving wheel. 957. FAST AND SLOW MOTION SPUR GEAR, or a quickreturn when operating a slide motion by a crank. The driving gearB is composed of gear sectors of differen-tial radius to correspond with the…
