Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 252

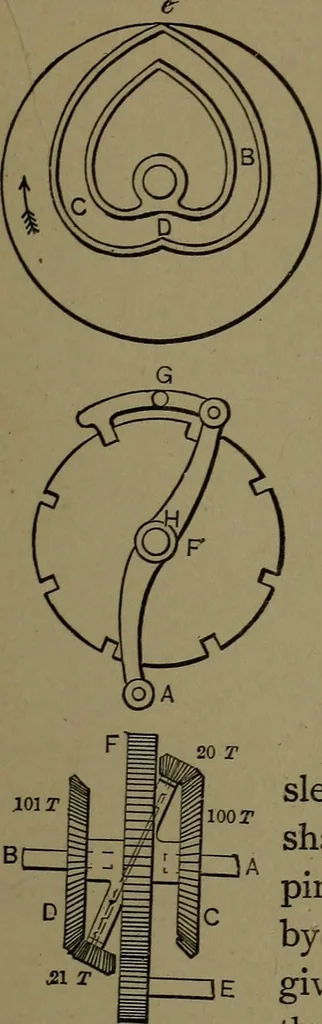

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 252
the spur wheel F, by the pinion E, variesthe speed of shaft B—A being the driving shaft. 970. CHANGE GEAR MOTION, with spurgearing only. The spur wheel C moves freely onthe disconnected shafts A and B. A short shaftand two fast pinions have a free motion near theperiphery of the spur wheel C. The…
