Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 254

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 254

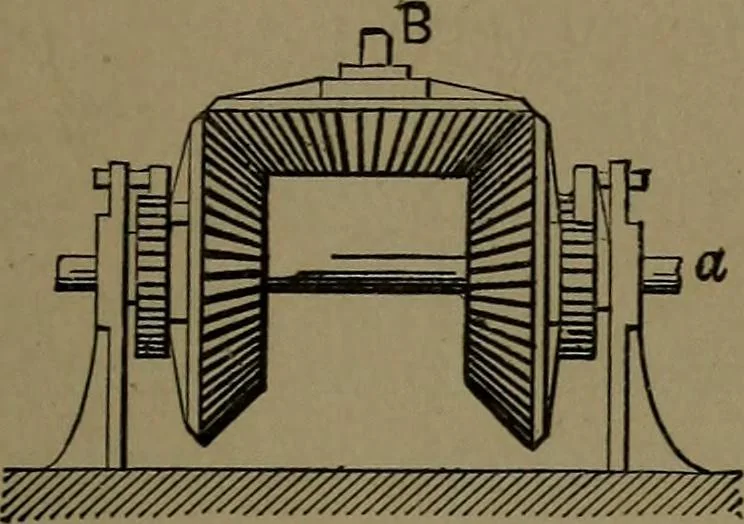

GEARING. 247 … 976. CONTINUOUS SHAFT MO-TION from an alternating driving shaftThe ratchets fixed to the bevel gears onthe shaft a are operated by pawls fixedto the shaft, the rocking of which re-volves the bevel gear and shaft B in onedirection.
