Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 258

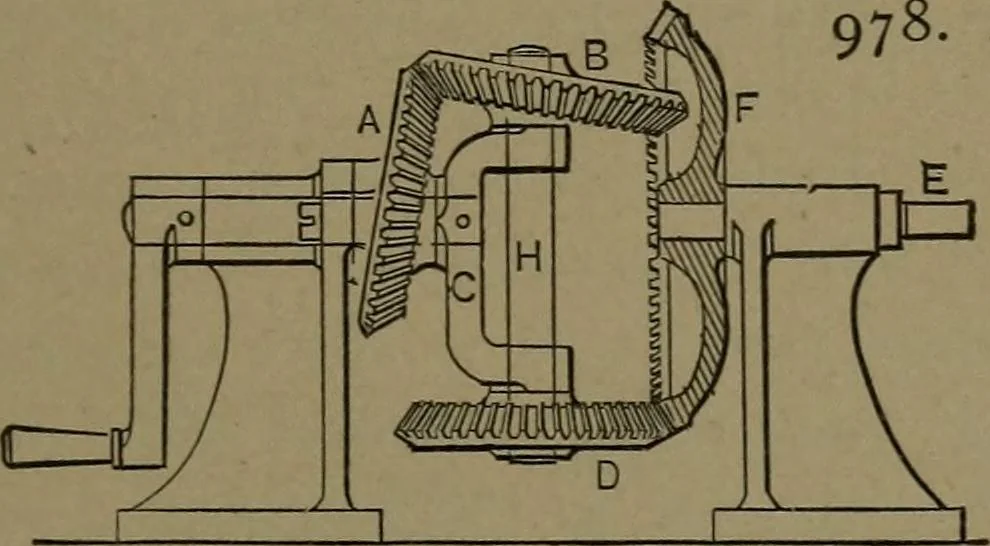

977. ALTERNATING MOTION of a shaftat right angles to a driving shaft by three bevelgears and double clutch. Bevel gears on clutchshaft run loose. Clutch slides on a feather orkey, and is operated by a Y-lever and groove inclutch. 978. ECCENTRIC WHEEL TRAIN. —The elliptical bevel gear A isfixed to…
Mechanical movements
