An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 256

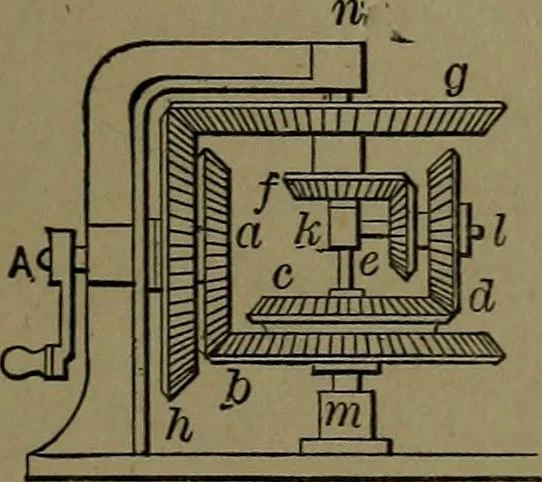

seful, but illustrating thechanged conditions of gear motion. Gears a andh are fixed to the crank shaft. Gears g and Jare fixed to a hollow shaft turning on the shaftn m. Gears e, h are fixed on a hollow shaft andturn on shaft n in. The arm y^ / is fast on andsupported by shaft 7t m. Gears e, d are…
