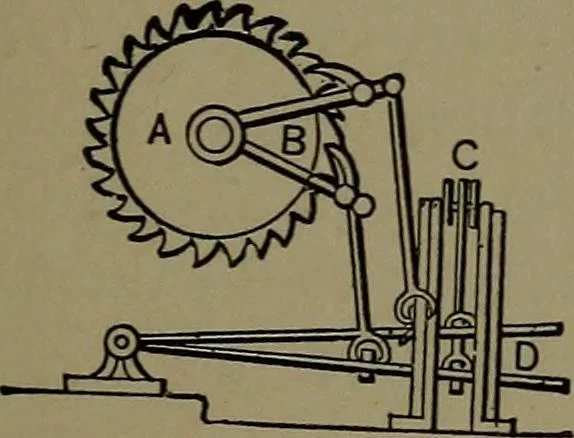

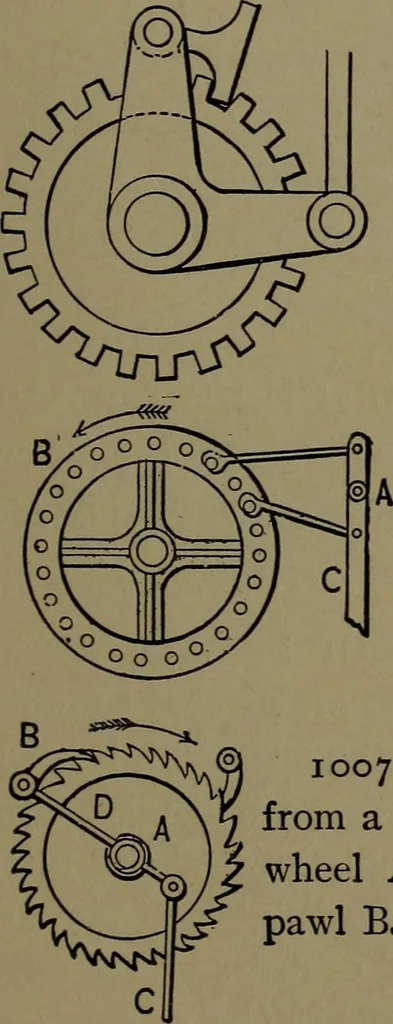

1003. INTERMITTENT CIRCULARMOTION.—Reversible by throwing over the doublepawl. Operated by a reciprocating rod attached tothe disc carrying the pawl. 1004. RATCHET INTERMITTENTMOTION, by the operation of treadles. Pawllevers and pawls are operated through con-necting rods to levers or treadles, the…
