A practical treatise on weaving and designing of textile fabrics : with chapters on the principles of construction of the loom, calculations and colour (1879)
Ashenhurst, Thos. R. (Thomas R.) · Bradford : T. Brear ; London : Simpkin, Marshal · leaf 111

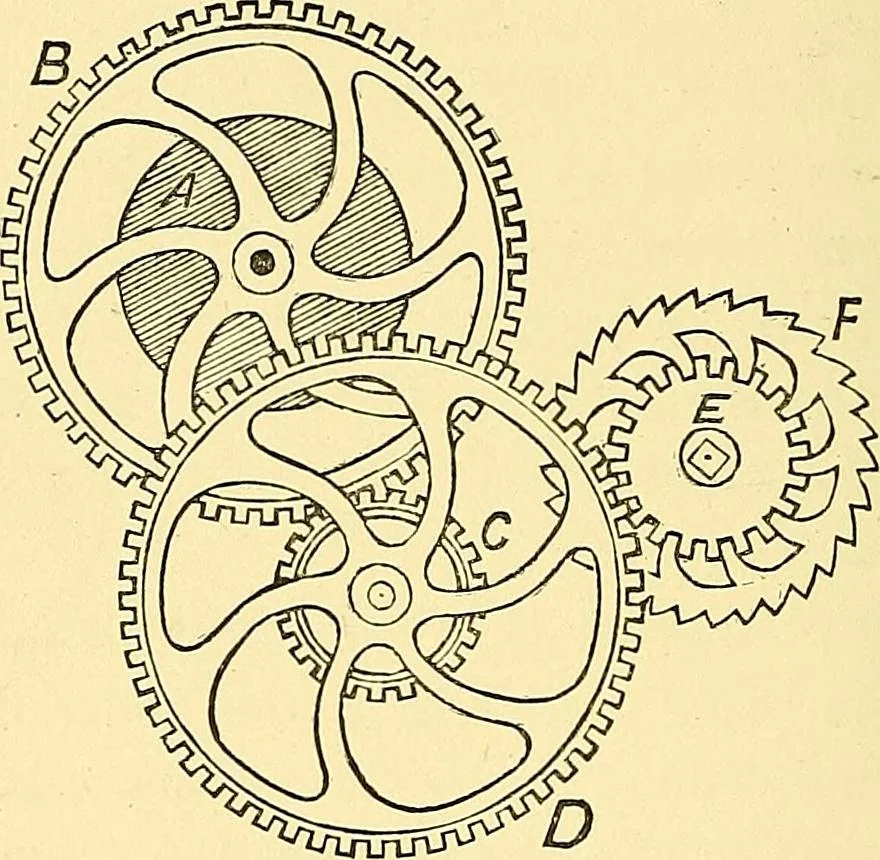

ngepinion to give a certain number of picks per inch mayrequire some explanation. The train of wheels in allclasses of looms is not always the same, but the followingis the general arrangement. Fig. 24 shows the wheels andtheir relation to each other: A is the feed roller; B is thefeed roller… … Fig. 24. Stroke of the lay the ratchet wheel is driven forward onetooth by a catch attached to the sword of the lay, then thequestion to determine is, having a feed roller of a givencircumference, a train of wheels of given dimensions,driven by a ratchet wheel also of given dimensions movingone…
Textile fabrics · Textile design · Weaving
