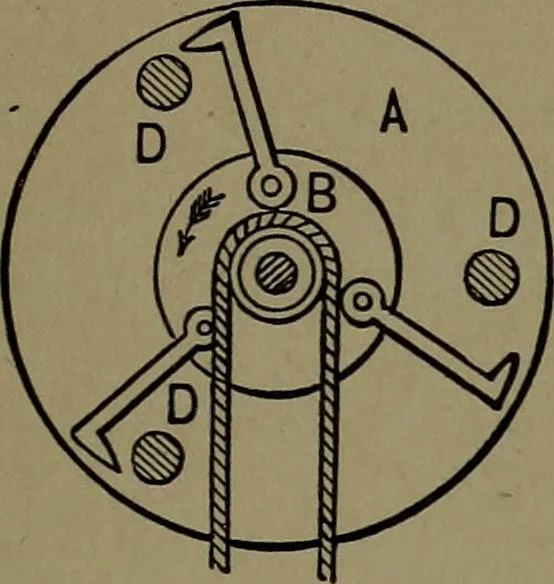

1026. SAFETY CENTRIFUGAL HOOKS.—Hooks are retained by springs until the cen-trifugal force of excessive speed throws them outto catch the pins in the fixed plate. 1027. CRANK MOTION for quick return ola lever. A, fulcrum of lever. MOTION AND DEVICES CONTROLLING MOTION. 259 … 1028. CENTRIFUGAL SAFETY CATCHfor hoisting drums. The studs D, D, D are fixedto the hoisting drum frame. B is a flange fastto the drum shaft and to which is pinioned thesafety hooks. At ordinary speed of the drumthe hooks hang back so as not to touch the studs.An unusual acceleration of speed…
