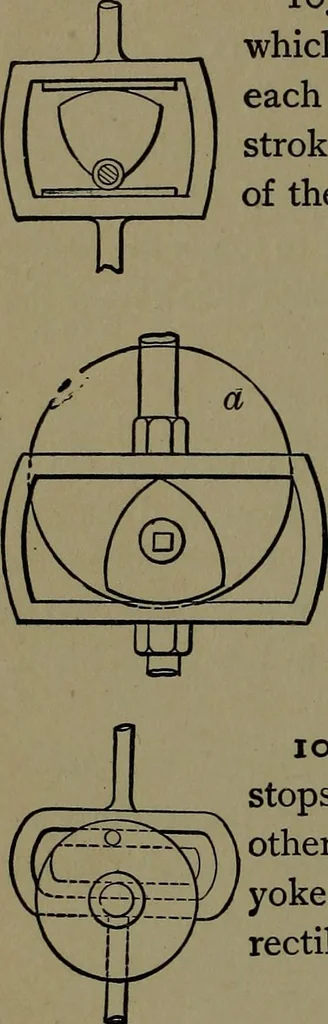

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 267
sliding in the slot makes a quick q\ return of the bell crank and connecting rod. 1031. IRREGULAR ROCKING MOTION in an arm having an endless groove of any re-quired shape, with the radius of the longitudinalaxis equal to the radius of the pin. Pin notshown. 1032. ROCKING ARM by cam groove.A groove…
