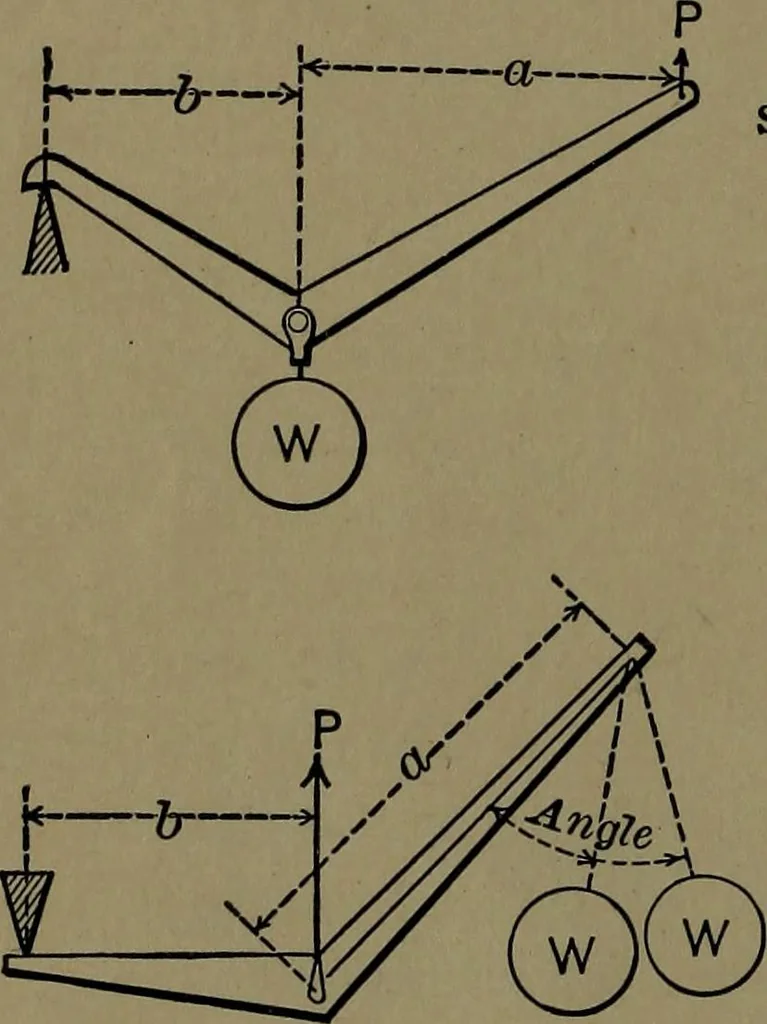

14. Bell Crank or Angular Lever, firstorder. Same notation as No. 11. … 15. Bell Crank or Angular Lever,second order. Same Notation as No. 12. 16. Bell Crank or Angular Lever,third order. WX 0 + ( a X cosine of a nglej =P
