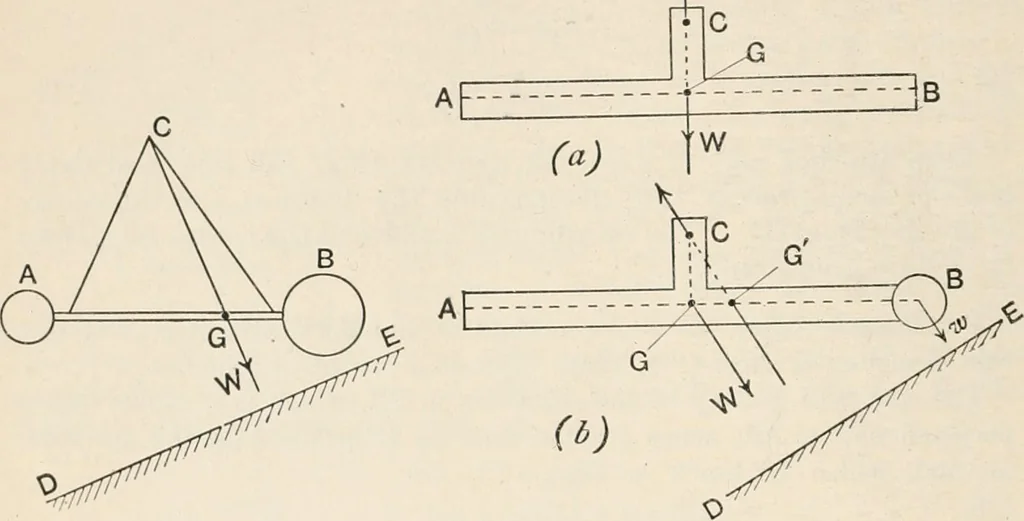

al passing through thefixed point. Example 1.—A loaded rod AB (Fig. 137) is suspended by means of twocords from a fixed point C. Find its position of equilibrium. The centre of gravity, G, of the loaded rod is first found by applicationof the foregoing methods. Join CG and produce it. The weight W… … Fig. 137.—A loaded rod. Fig. 138.—Position of equilibrium of aloaded body. Example 2.—A body ABC (Fig. 138 (a)), of weight W, is suspendedfreely from C, and AB is then horizontal. The centre of gravity Gbisects AB, and CG is at 90° to AB. Find the angle which AB makeswith the horizontal when a body…
