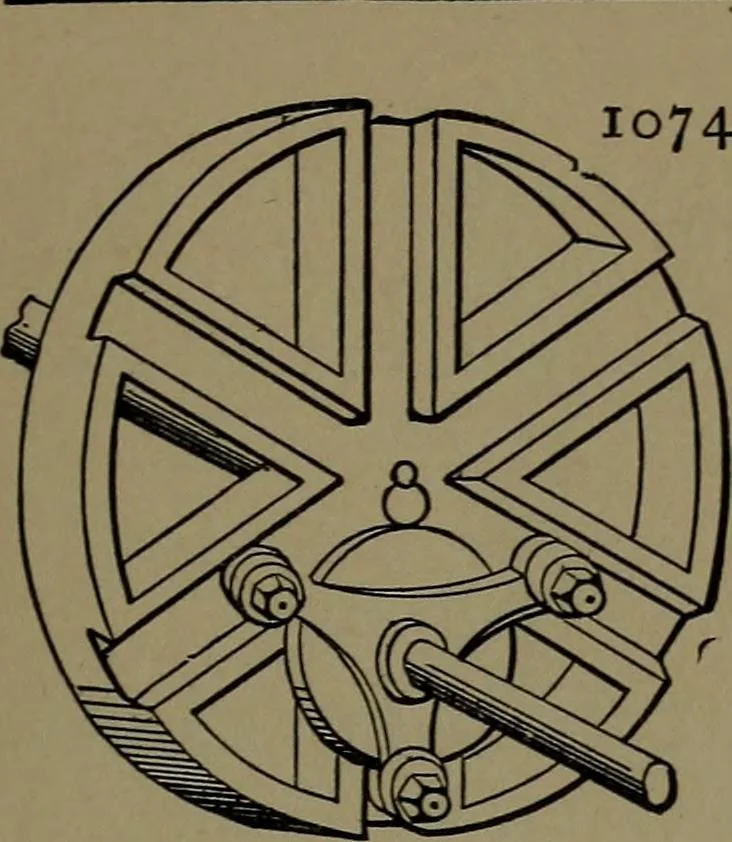

1073. RECTILINEAR MOTION by a right- and left-hand screw shaft driven by aworm gear. The nuts move on the right andleft screw. MOTION AND DEVICES CONTROLLING MOTION. 267 … 1074. SIX RADIAL GROOVED TRAMMELand triangular shaft arms, driving or beingdriven by a shaft out of line. The frictionrollers give freedom of motion to either gear.
