Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 289

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 289

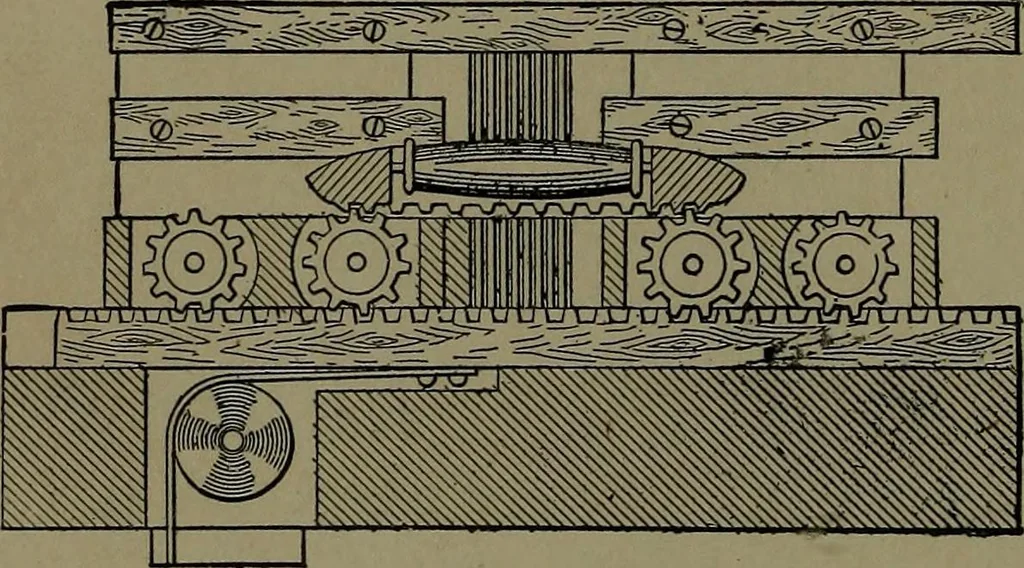

1145/. POSITIVESHUTTLE MOTIONfor a narrow fabricloom. The shuttle hasa narrow recessed rackgeared through a set ofpinions to the recipro-cating rack. ii45i^. A CURIOUS PADLOCK.—The key is like a corkscrew. The circular recess in front contains a rotating cylinder with a spiral keywayand graduated…
