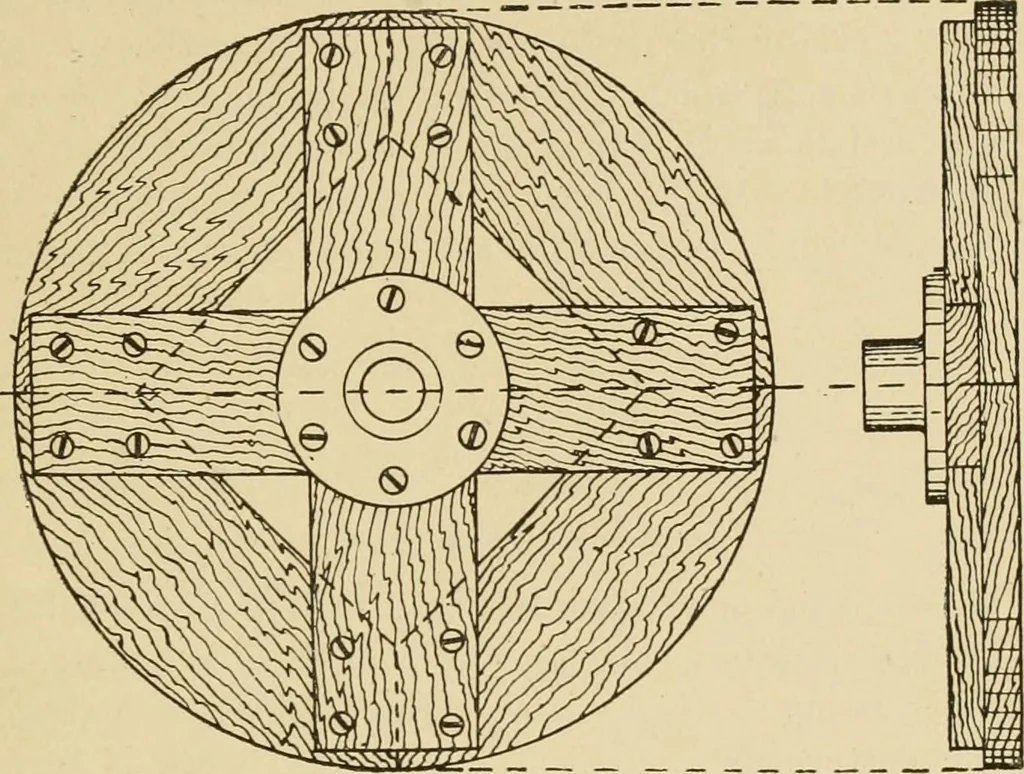

t chuck-ing blocks like those in Fig. 96, A, are screwed tothem, in preference to recessing the plates themselves.Turning jointed patterns is properly done after thetimber has been jointed and dowelled. That is, in-stead of turning a solid piece of wood and sawing itdown to make a joint, the wood… … Fig. Face Plate with Cross. between centres are frequently held with wood screws,Fig. 99, run into waste wood just beyond the ends ofthe actual pattern, or if in the pattern portion, they are
