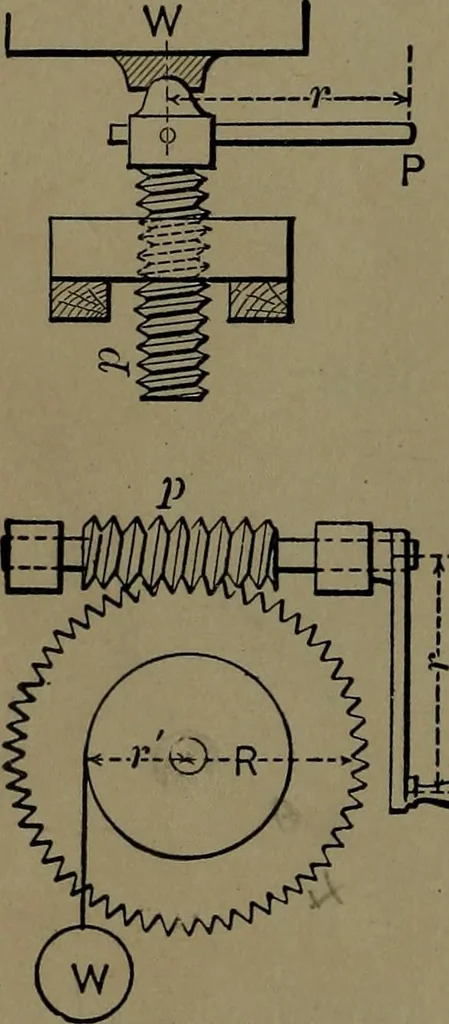

Strain 24. THK WEDGE. Strain = force of blow X / w /, length of wedge.Wf width of wedge. … 25. THE SCREW. All measures in equalunits or inches. W = PX (2 X rX 3.1416)Pitch of screw P = W X pitch of screw2 X rX 3.1416 : h- ii^- 26. WORM GEAR or ENDIvESS SCREW. P = power.r = length of crank.R = radius of pitch line of gear.p = pitch of screw.r = radius of winding drum. W = PXrX6.28XRpXr P…
