Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 307

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 307

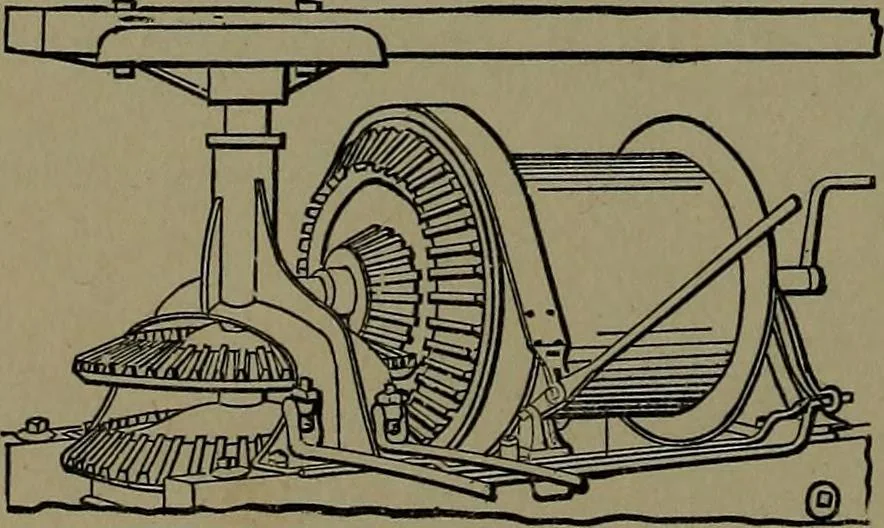

1208. STEAM-DRIVEN VENTI-LATING FAN.—Type of those used inthe coal-mining districts. The fan wheelmay be encased in an iron or wooden shell. 1209. MINERS SAFETY LAMP.—The flameis surrounded with wire gauze and a double wiregauze cap. In explosive mine gases, the firing ofthe incoming air and gas… … 1210. HORSE-POWER HOIST-ING DRUM, double speed. Thespeed is changed by dropping oneor the other driving gear by the le-vers. A release for running back ismade by turning the crank whichdisengages the gear clutch.

Mechanical movements

Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
