Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 307

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 307

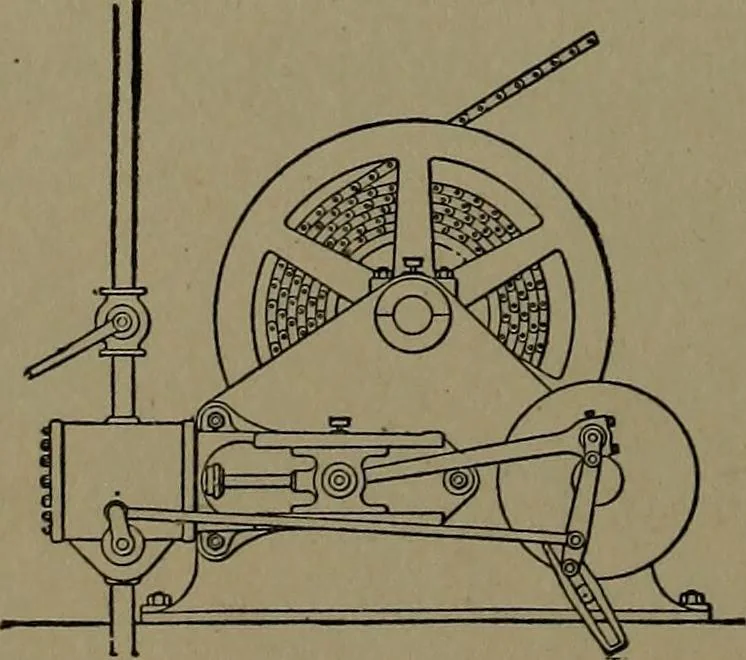

1210. HORSE-POWER HOIST-ING DRUM, double speed. Thespeed is changed by dropping oneor the other driving gear by the le-vers. A release for running back ismade by turning the crank whichdisengages the gear clutch. … 1211. STEAM HOISTING ENGINE,with flat chain drum and reversing link.The flat chain winds upon itself on anarrow drum. MINING. 301
