Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 308

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 308

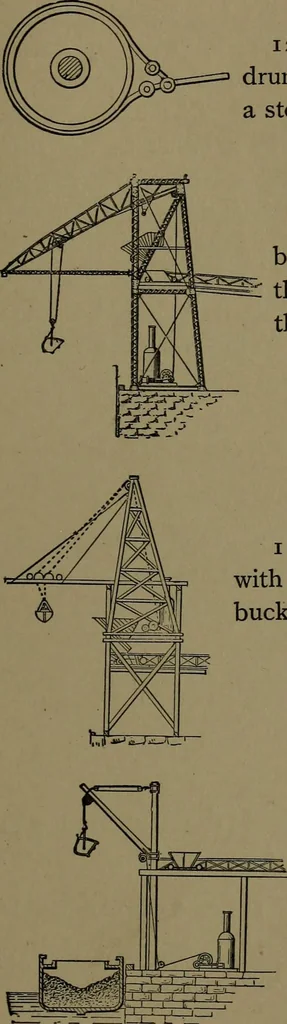

1211. STEAM HOISTING ENGINE,with flat chain drum and reversing link.The flat chain winds upon itself on anarrow drum. MINING. 301 … I2I2. STRAP BRAKE, used on hoistingdrums and wheels. The strap is usually made ofa steel band with its ends jointed to a lever. 1213. ELEVATOR TOWER with inclinedboom. The bucket is lifted to the trolley bythe double tackle, drawn up the incline, andthe load dumped automatically into a car. 1214.…
