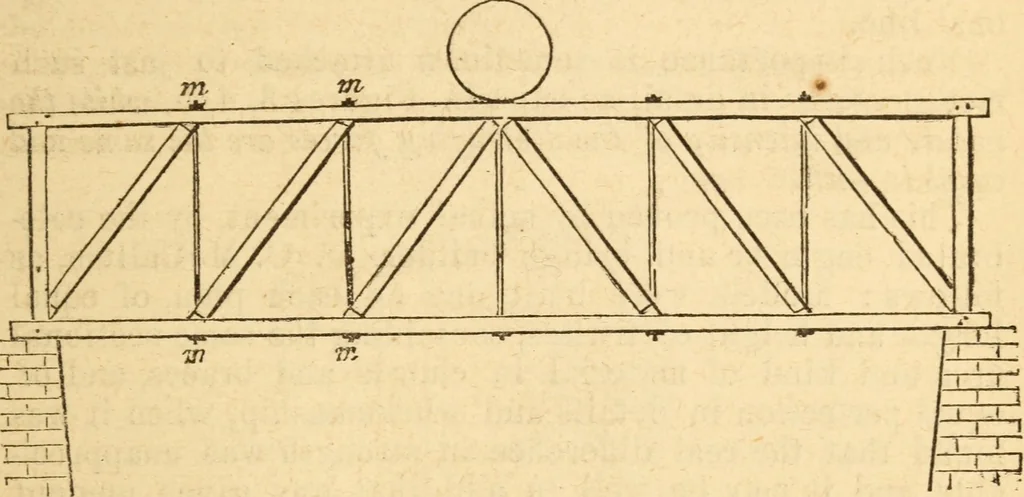

Figure 3 is the truss of the Burr Bridge ; in this theupper chord and braces are acted upon by thrust, and thelower chord and posts by tension. Figure 4 is the Howe Truss, without the counter braces ; PRACTICAL MECHANICS. 163 in this also, the upper chord and braces are subjected tothrust, and the… … Figure 5 is a plan of truss sometimes used, the counterrods being omitted ; in this the upper chord and verticalstruts are subjected to thrusts, and the lower chords anddiagonal rods are acted upon by tension. Fig. 5.
