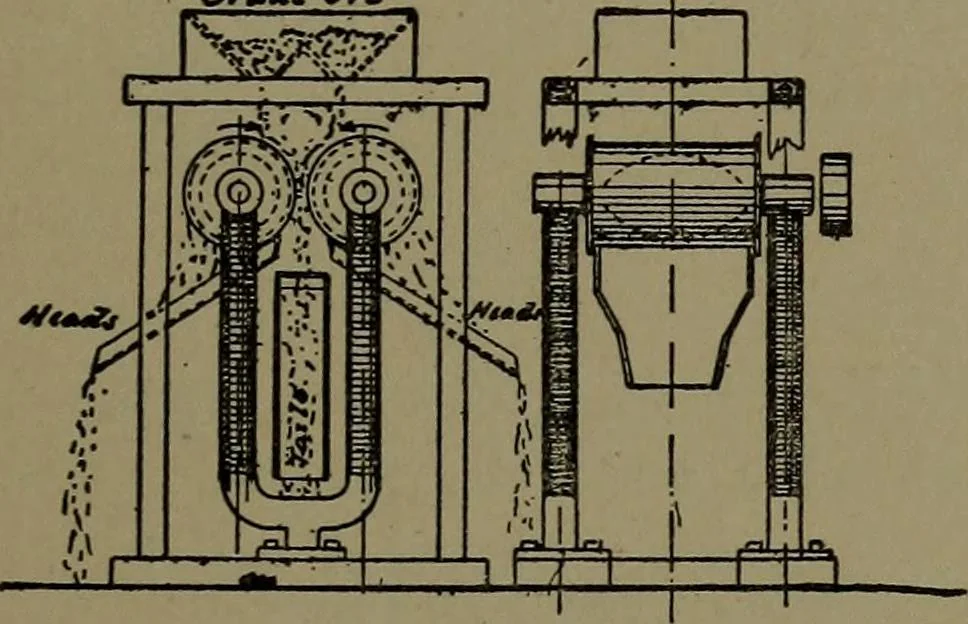

1246. CENTRIFUGAL SEPARATOR.— A central revolving shaft carries a set of conicalperforated plates, between which perforatedplates are fixed to the shell of the machine.Grain or other material is fed at the top, andan air blast at the bottom. Centrifugal actiondischarges the material at the… … 1247. MAGNETIC ORE SEP-ARATOR, Buchanan type. Twocylinders, magnetized by powerfulhorseshoe electro-magnets, are re-volved at considerable speed. Thepulverized ore is fed from hopperson top of the rolls ; the iron is heldto the rolls and thrown off afterpassing the chutes. The tailings drop…
