Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 322

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 322

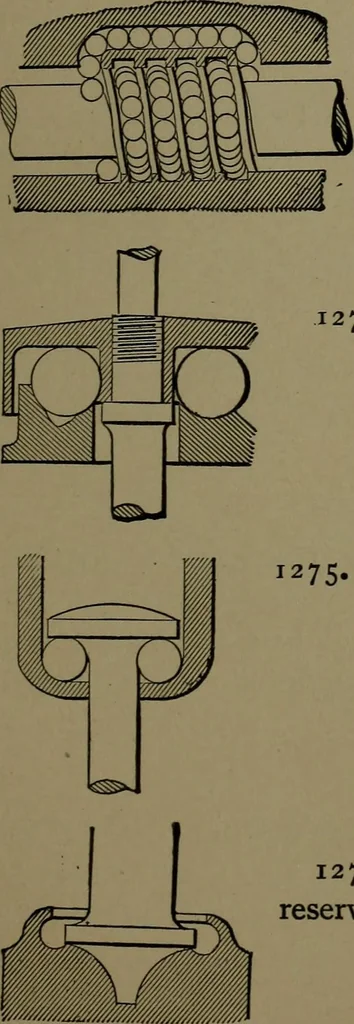

1271. ADJUSTABLE HANGER for shafting.A, drop of the hanger. Jointed cap to allow ofremoval of shaft. 1272. SCREW TRAVERSINGBALL BEARING, with balls returningthrough outside passage. Grooves re-cessed in shaft. … 1273. SCREW TRAVERSINGBALL BEARING. The balls returningby a side passage. Ball grooves enlargedfor full strength of shaft. 1274. HANGING SHAFT on ball bearings. 1275. SUSPENDED SHAFT on ball bearings. 1276. CURVED STEP BEARING, with oUreservoir. $i6 MILL AND FACTORY APPLIANCES.
