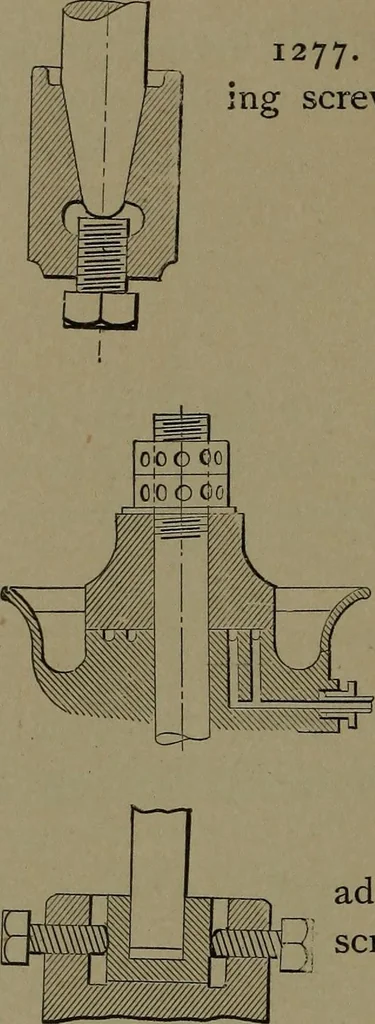

^ -* Ii. I |. ! \JL ^^x. p^ 1275. SUSPENDED SHAFT on ball bearings. WK 1276. CURVED STEP BEARING, with oUreservoir. ■/-/, 3i6 MILL AND FACTORY APPLIANCES. … 1277. CONICAL PIVOT BEARING and adjust-ing screw. 1278. LUBRICATION OF A HANGINGBEARING by hydraulic pressure. Oil isforced into the grooves of the bearing throughthe small holes and discharges into the cuparound the outside. 1279. VERTICAL SHAFT STEP.—Made adjustable by a movable bearing held by…
