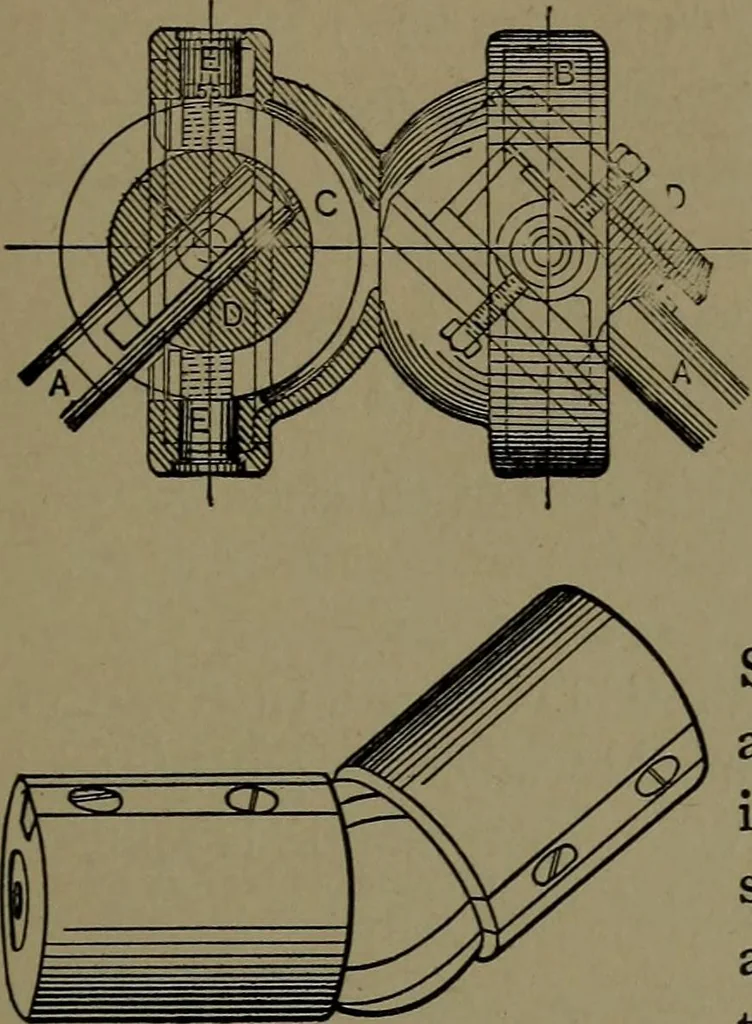

1294. UNIVERSALshafting. Ring gimbal. JOINT, for 1295. HOOKES UNIVERSAL JOINT.—One shaft end is keyed into a ball with trun-nions, which turn in a ring with trunnions atright angles with the ball trunnions. The ringtrunnions turn in the outer shell to which theother shaft is keyed. MILL AND FACTORY…
