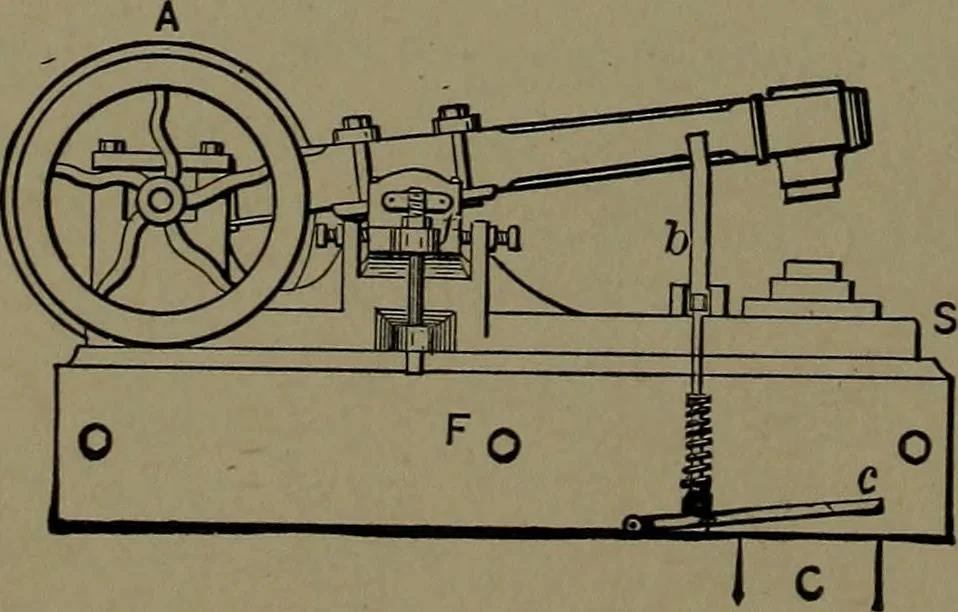

1362. BLACKSMITHS HELPER, orfoot helve hammer. Operated by the footon the treadle. Hammer held up by thespring. 1363. REVOLVING RAPID-BLOW HAM-MER.—The centrifugal action of the revolvingarms throws the hammers outward. … 1364. HELVE TRIP HAM-MER.—An ancient device yet inuse. The treadle stops the actionof the hammei by disengaging thebell-crank catch b. Used for smallwork. MILL AND FACTORY APPLIANCES. 331
