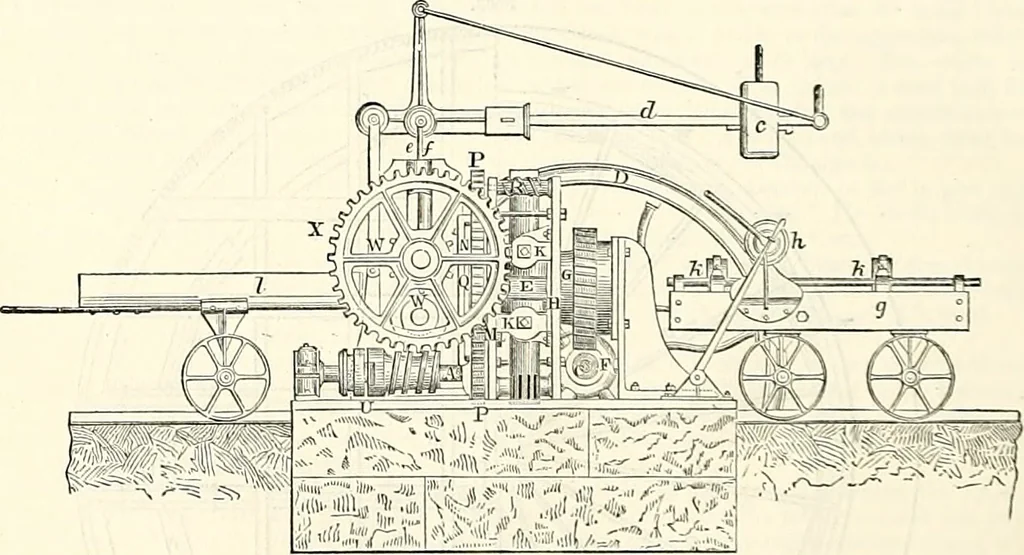

mplete longitudinal elevation of the machine in working order, having the frontheavy driving geering removed to avoid obscuring the twisting details. In the same view are alsoshown the carriages on which the bars under treatment are conveyed to and from the machine. Fig. 3686 is a corresponding… … Fig. 3688 is a side elevation of a modification of the delivering rollers, diftering slightly from the sameportion in Fig. 3687 in point of regulation of tlie upper roller-bearing. Fig. 3689 is a front elevation of the first or revolving set of rollers, exhibiting the actuating mechan-ism whence…
