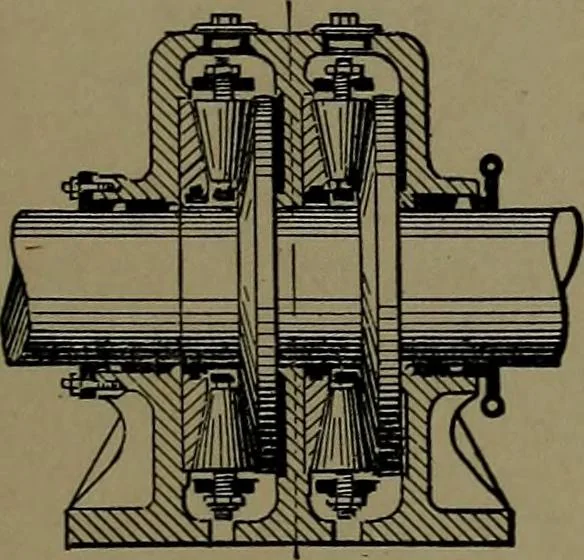

1443c. SPOOL WIND-ING MACHINE.—Aworm screw B and geardrives a set of cams R ona cross shaft and oscillatesa lever and thread guide toand fro. The spool spindledriven by friction gear fromthe shaft B. … 14436/. CONICAL ROLLERTHRUST BEARING.—The conicalrollers are held in ring travellers, in-side and outside, which are connectedtogether between the rollers. The conical lines meet at the centerof the shaft.
