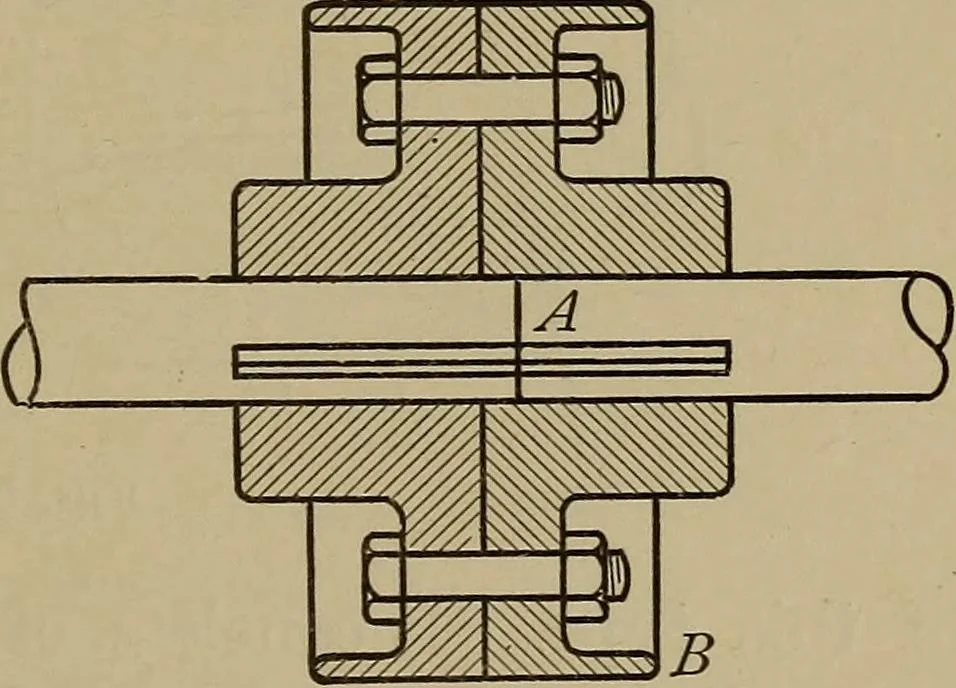

the -shaft carries numerous pulleys withtheir belts. 67. Couplings. The flange or plate coupling is mostcommonly used for fastening together adjacent lengthsof shafting. Fig. 58 shows the pro- &%& portions of such a coup-ling. The flanges areturned accurately on allsides, are keyed to… … 134 MACHINE DESIGN. The projecting rim as at B prevents danger frombelts catching on the heads and nuts of the holts. The faces of this coupling should be trued up in alathe after being keyed to the shaft. Jones and Laughlins in their shafting catalogue givethe following proportions for flange…
