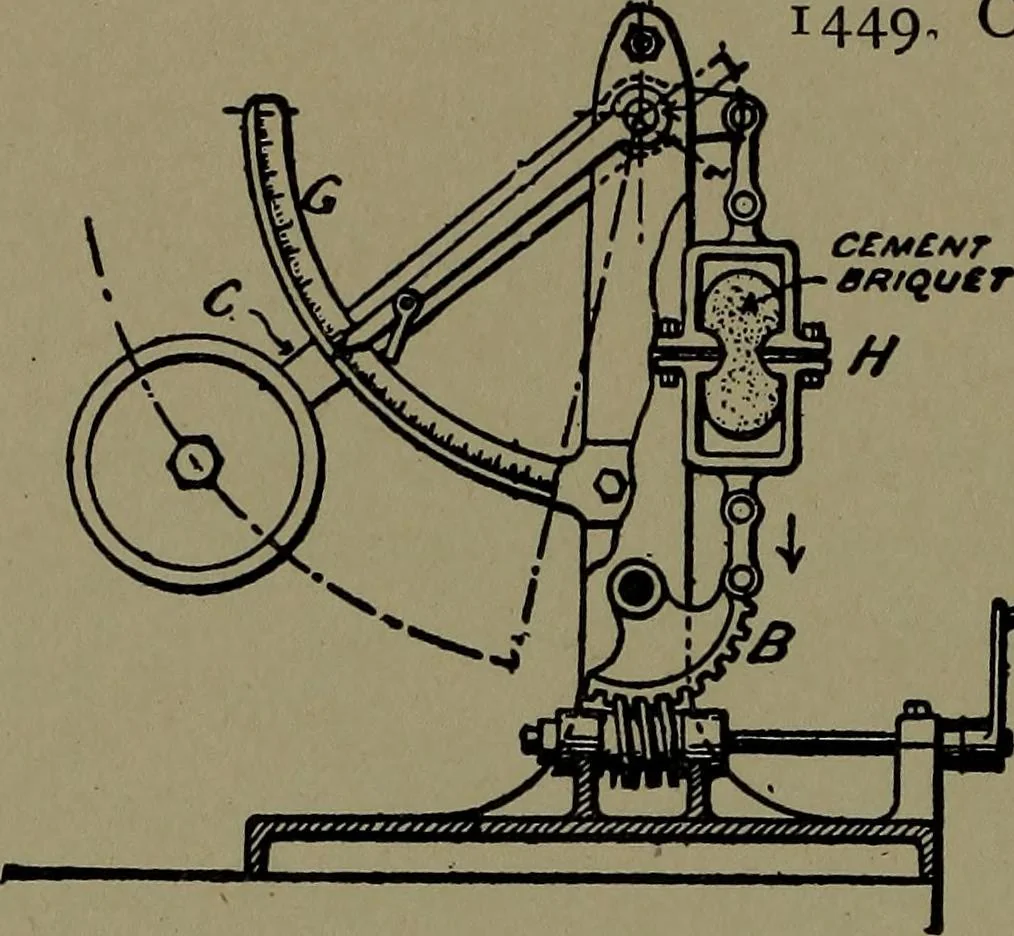

1445. PUG MILL, with spiral worm in a conicalshell, for mixing mortar, concrete, or other materiaL 1446. CONICAL PUG MILL for mixing clays,mortar, concrete, and other material. 1447. CONICAL MIXING BARREL formortar, concrete, or other material. 1448. CONCRETE MIXER.—A rectan-gular box of iron… … CEMENT-TESTING MACHINE. —The cement sample is placedin the jaws at H. The sectorB is turned by the worm screwuntil the weight on the arm Cis raised to the limit of thebreaking strain, where the in-dex hand on the graduated arcis caught by the pawl, whenthe weight falls.
